PDF RAG API

Production-ready Retrieval-Augmented Generation API built with FastAPI, Google Gemini, and Pinecone. Upload PDFs and query them in natural language with source citations.

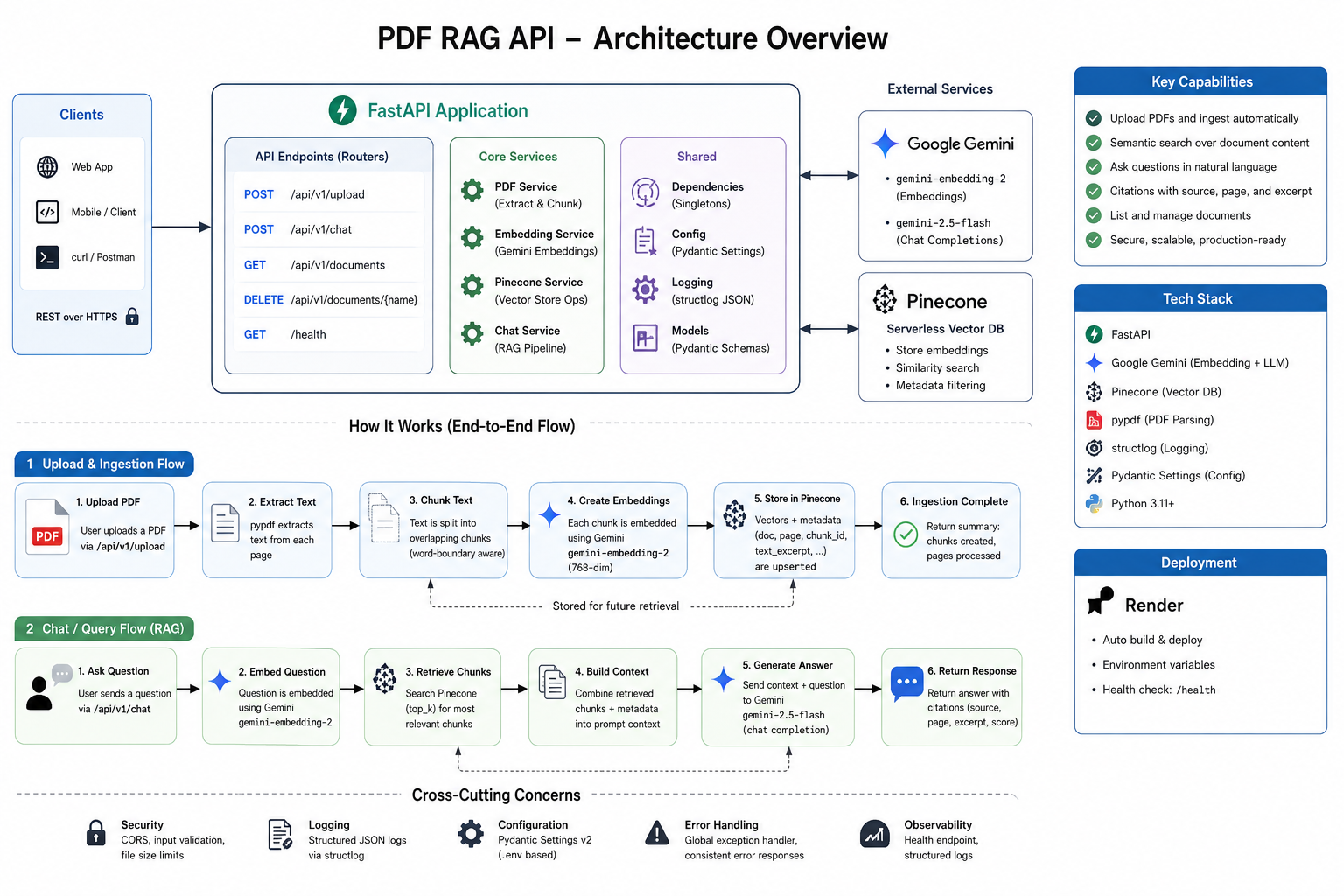

System Architecture

Stack

Layer	Technology
Framework	FastAPI
Embeddings	Gemini gemini-embedding-2 (768-dim)
Generation	Gemini gemini-3.1-flash-lite
Vector Store	Pinecone Serverless
PDF Parsing	pypdf
Logging	structlog (JSON)
Deployment	Render

Architecture

app/
├── main.py                   # FastAPI factory, CORS, global error handler, lifespan
├── config.py                 # Pydantic-settings v2 (env-based)
├── dependencies.py           # Singleton service wiring via module-level globals
├── models/
│   ├── requests.py           # ChatRequest
│   └── responses.py          # ChatResponse, Citation, DocumentInfo, UploadResponse, …
├── routers/
│   ├── upload.py             # POST /api/v1/upload
│   ├── chat.py               # POST /api/v1/chat
│   ├── documents.py          # GET/DELETE /api/v1/documents
│   └── health.py             # GET /health
├── services/
│   ├── pdf_service.py        # PDF extraction + word-boundary-aware chunking
│   ├── embedding_service.py  # Gemini gemini-embedding-2 (batched, async)
│   ├── pinecone_service.py   # Upsert / query / list / delete with metadata
│   └── chat_service.py       # RAG pipeline: embed → retrieve → prompt → generate
└── utils/
    └── logging.py            # Structured JSON logging

Quick Start

1. Clone and install

git clone <repo>
cd rag-api
python3 -m venv .venv && source .venv/bin/activate
pip install -r requirements.txt

2. Configure

cp .env.example .env
# Edit .env — fill in your API keys

Required keys:

Variable	Where to get it
GEMINI_API_KEY	https://aistudio.google.com/app/apikey
PINECONE_API_KEY	https://app.pinecone.io
PINECONE_INDEX	Any name, e.g. rag-documents (auto-created on first run)

3. Run locally

uvicorn app.main:app --reload

• API: http://localhost:8000
• Swagger UI: http://localhost:8000/docs
• ReDoc: http://localhost:8000/redoc

On first startup the Pinecone index is created automatically (~10–30 seconds). Subsequent starts are instant.

---

API Reference

GET /health

curl http://localhost:8000/health

{
  "status": "ok",
  "version": "1.0.0",
  "timestamp": "2026-06-02T15:00:00Z",
  "services": {"api": "ok"}
}

---

POST /api/v1/upload

Upload and ingest a PDF. Text is extracted, chunked, embedded, and stored in Pinecone.

curl -X POST http://localhost:8000/api/v1/upload \
  -F "file=@report.pdf"

{
  "document_name": "report.pdf",
  "chunks_created": 42,
  "pages_processed": 8,
  "message": "Successfully ingested 'report.pdf' (42 chunks across 8 pages)."
}

Limits:

• PDF only (.pdf, application/pdf)
• Max 50 MB (configurable via MAX_FILE_SIZE_MB)

---

POST /api/v1/chat

Ask a question against all ingested documents.

curl -X POST http://localhost:8000/api/v1/chat \
  -H "Content-Type: application/json" \
  -d '{"question": "What are the main findings?", "top_k": 5}'

{
  "answer": "The main findings indicate...",
  "citations": [
    {
      "document_name": "report.pdf",
      "page_number": 3,
      "chunk_id": "report.pdf_p3_c0",
      "text_excerpt": "Key findings indicate...",
      "relevance_score": 0.9124
    }
  ],
  "model": "gemini-3.1-flash-lite",
  "usage": {
    "prompt_tokens": 512,
    "completion_tokens": 128,
    "total_tokens": 640
  }
}

Request body:

Field	Type	Default	Description
question	string	required	Natural language question (max 2000 chars)
top_k	int	5	Number of chunks to retrieve (1–20)
temperature	float	0.2	Generation temperature (0.0–2.0)

---

GET /api/v1/documents

List all ingested documents with chunk counts and page numbers.

curl http://localhost:8000/api/v1/documents

{
  "documents": [
    {
      "document_name": "report.pdf",
      "chunk_count": 42,
      "pages": [1, 2, 3, 4, 5],
      "uploaded_at": "2026-06-02T15:00:00Z"
    }
  ],
  "total": 1
}

---

DELETE /api/v1/documents/{document_name}

Remove all Pinecone vectors for a specific document.

curl -X DELETE "http://localhost:8000/api/v1/documents/report.pdf"

{
  "document_name": "report.pdf",
  "chunks_deleted": 42,
  "message": "Deleted 42 chunk(s) for 'report.pdf'."
}

---

Configuration Reference

Variable	Default	Description
GEMINI_API_KEY	required	Google AI Studio API key
PINECONE_API_KEY	required	Pinecone API key
PINECONE_INDEX	required	Pinecone index name
GEMINI_EMBEDDING_MODEL	gemini-embedding-2	Embedding model
GEMINI_CHAT_MODEL	gemini-3.1-flash-lite	Chat completion model
GEMINI_EMBEDDING_DIMENSIONS	768	Output vector size (128–3072)
PINECONE_NAMESPACE	documents	Pinecone namespace
PINECONE_TOP_K	5	Default retrieval count
CHUNK_SIZE	1000	Characters per chunk
CHUNK_OVERLAP	200	Overlap between chunks
MAX_FILE_SIZE_MB	50	Max upload size in MB
APP_ENV	development	development / production / testing
LOG_LEVEL	INFO	Logging level

---

Running Tests

pytest -v

Tests use mocked Pinecone and Gemini clients — no real API calls are made.

---

Deploy to Render

1. Push this repo to GitHub.
2. In the Render dashboard, create a Web Service and connect your repo.
3. Render auto-detects render.yaml. Add your secret environment variables via the dashboard:
   • GEMINI_API_KEY
   • PINECONE_API_KEY
   • PINECONE_INDEX
4. Deploy — render.yaml handles the build and start commands.

The render.yaml is pre-configured with:

• Build: pip install -r requirements.txt
• Start: uvicorn app.main:app --host 0.0.0.0 --port $PORT
• Health check: GET /health
