Summary

Cause

The .table wrapper uses overflow-x: auto to preserve horizontal scrolling. CSS computes the other overflow axis to auto as well, so the wrapper creates a vertical clipping boundary. Tooltips are absolutely positioned outside their trigger, which means first-row top tooltips and last-row bottom tooltips are clipped even though the tooltip itself has a high z-index.

Fix

Temporarily switch the table wrapper to overflow: visible while a descendant tooltip is hovered or keyboard-focused. When the tooltip is inactive, the wrapper keeps its existing overflow-x: auto behavior and horizontal scrolling remains unchanged.

Pattern alignment

The fix stays in table.css, next to the rule that owns the clipping behavior. It uses the same nested CSS and :is(:hover, :focus-visible) state pattern already used by the tooltip component, without changing tooltip markup, JavaScript, placement logic, or the table structure. The minified gzip increase is 18 bytes.

Fixes #161

Verification

  • Ran make clean dist successfully.
  • Reproduced the clipping on the current master branch with a top tooltip in the first table row.
  • Verified with Computer Use in Safari using real keyboard focus.
  • Confirmed first-row top and last-row bottom tooltips render fully outside the table boundary.
  • Confirmed the wrapper reports overflow: visible only while a tooltip is active and returns to overflow: auto otherwise.

Screenshots

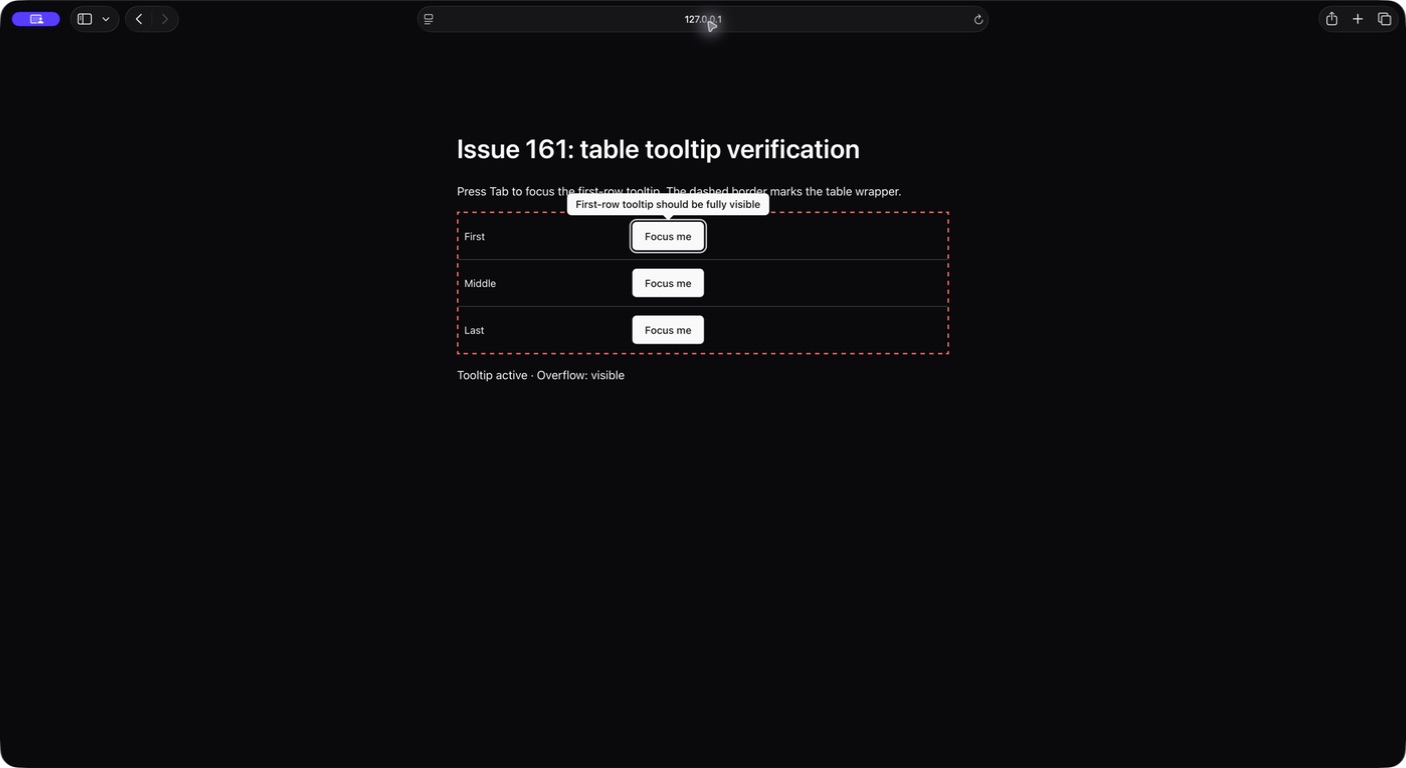

First-row top tooltip:

First-row top tooltip rendering outside the table boundary

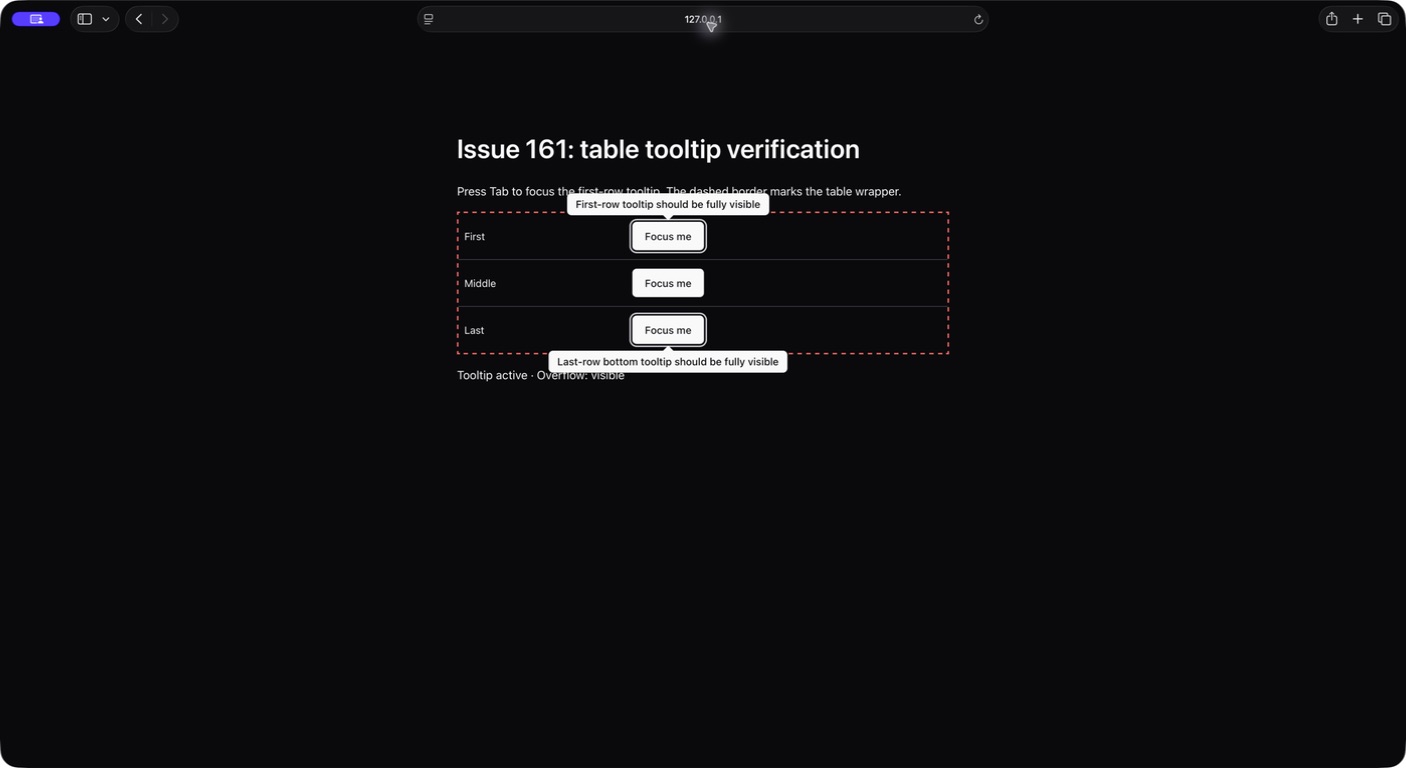

Last-row bottom tooltip:

Last-row bottom tooltip rendering outside the table boundary

@UjjwalGupta49
UjjwalGupta49 marked this pull request as ready for review July 15, 2026 05:55
Comment thread src/css/table.css
width: 100%;
overflow-x: auto;

&:has([data-tooltip]:is(:hover, :focus-visible)) {

Copy link
Copy Markdown
Owner

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

hm, Oat doesn't have a data-tooltip.
