Fuel Prices UK - Home Assistant Integration

A Home Assistant custom integration that monitors fuel prices at UK petrol stations using official government data feeds.

Find the cheapest fuel near you!

Features

• ✅ Official Fuel Finder API - Uses the UK Government Fuel Finder API (OAuth-protected)
• ✅ Real-time Price Monitoring - Track E10, E5, B7 (Diesel), and SDV (Super Diesel) prices
• ✅ Location-Based Search - Find stations within a specified radius of your home or any location
• ✅ Automatic Updates - Configurable update intervals from 5 minutes to 24 hours
• ✅ Easy Setup - Simple configuration flow with map-based location selection
• ✅ Cheapest Price Sensors - Automatically shows the cheapest price for each fuel type
• ✅ Ranked Cheapest Options - Optionally expose 2nd, 3rd (up to 5th) cheapest stations per fuel type

Supported Fuel Types

• E10 - Standard unleaded petrol (10% ethanol)
• E5 - Super unleaded petrol (5% ethanol)
• B7 - Standard diesel (7% biodiesel)
• SDV - Super diesel / Premium diesel

Fuel Finder API Access

This integration now uses the UK Government Fuel Finder platform directly:

• Public data API: GET /api/v1/pfs and GET /api/v1/pfs/fuel-prices
• Authentication: OAuth client credentials via POST /api/v1/oauth/generate_access_token
• Documentation: Fuel Finder Developer Portal

You must create your own API application credentials before setup.

Installation

HACS (Recommended)

1. Ensure HACS is installed
2. Add this repository as a custom repository in HACS:
   • Click on HACS in the sidebar
   • Click on "Integrations"
   • Click the three dots in the top right corner
   • Select "Custom repositories"
   • Enter the repository URL: https://github.com/beecho01/Fuel-Prices-UK
   • Select category: "Integration"
   • Click "Add"
3. Find "Fuel Prices UK" in the HACS integration list
4. Click "Download"
5. Restart Home Assistant

Manual Installation

1. Download the latest release from GitHub Releases
2. Extract the custom_components/fuel_prices_uk directory to your Home Assistant custom_components directory
3. Restart Home Assistant

Configuration

Setup via UI

Before adding the integration, create API credentials:

1. Sign in at the Fuel Finder Developer Portal
2. Create an Information Recipient application
3. Copy your client_id and client_secret

Then in Home Assistant:

1. Go to Settings → Devices & Services
2. Click + Add Integration
3. Search for "Fuel Prices UK"
4. Follow the configuration wizard:

• Fuel Finder API Client ID
• Fuel Finder API Client Secret
• Location Method (map or address/postcode)
• Update Interval: How often to fetch prices (minimum 300 seconds)
• Location: Map pin or address/postcode lookup
• Search Radius: Distance in miles (0.5-31)
• Fuel Types: Fuel types to monitor

Configuration Options

After setup, you can update these settings by clicking Configure on the integration:

• Fuel Finder API credentials
• Update interval
• Search radius
• Fuel types to monitor
• Number of cheapest options to expose per fuel type (1-5)

Sensors

The integration creates ranked sensors for each fuel type you've selected.

Cheapest Price Sensors

The integration creates ranked sensors per selected fuel type based on your Number of Cheapest Options setting.

• Rank 1 keeps the existing entity naming style and represents the cheapest station.
• Higher ranks expose next-best alternatives (for example 2nd and 3rd cheapest).

Rank 1 Sensor Name: sensor.fuel_price_uk_[location]_[distance]_cheapest_[fuel_type]

Higher Rank Sensor Name: sensor.fuel_price_uk_[location]_[distance]_rank_[n]_cheapest_[fuel_type]

Example: sensor.fuel_price_uk_sw1a_2aa_3_mi_cheapest_e10

State: Current price for that rank in £/L to 3 decimal places (e.g. £1.379)

Attributes:

• fuel_type: The type of fuel (E10, E5, B7, SDV)
• price_rank: Rank position (1 = cheapest, 2 = second cheapest, etc.)
• price_rank_label: Human-readable rank label (for example 1st, 2nd, 3rd)
• address: Full address of the station
• postcode: Postcode of the station
• brand: Retailer brand (e.g., "Tesco", "Shell")
• latitude: Station latitude
• longitude: Station longitude
• distance: Distance from your location (km)
• last_updated: When the price was last updated
• unit_of_measurement: GBP
• device_class: monetary
• icon: mdi:gas-station

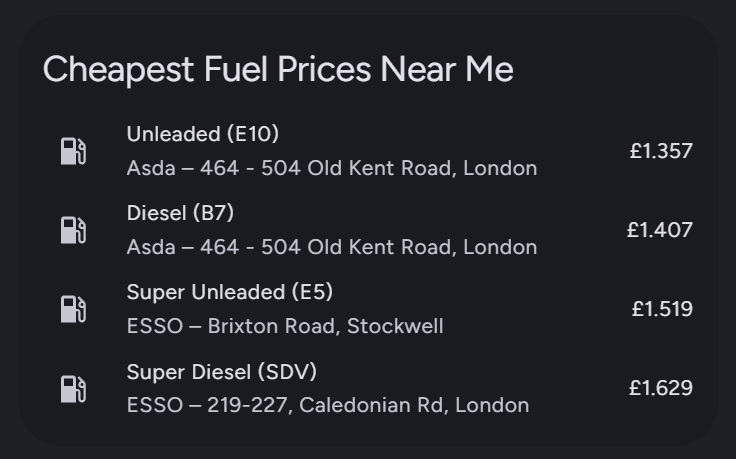

Example Lovelace Card

type: entities
title: Cheapest Fuel Prices Near Me
entities:
  - entity: sensor.fuel_price_uk_sw1a_2aa_3_mi_cheapest_e10
    name: Unleaded (E10)
    secondary_info: last-updated
  - entity: sensor.fuel_price_uk_sw1a_2aa_3_mi_cheapest_b7
    name: Diesel (B7)
    secondary_info: last-updated
  - entity: sensor.fuel_price_uk_sw1a_2aa_3_mi_cheapest_e5
    name: Super Unleaded (E5)
    secondary_info: last-updated
  - entity: sensor.fuel_price_uk_sw1a_2aa_3_mi_cheapest_sdv
    name: Super Diesel (SDV)
    secondary_info: last-updated

The standard Home Assistant entities card does not evaluate Jinja templates in secondary_info. If you want brand + address rendered inline, use a custom row card such as custom:template-entity-row from HACS.

Example Ranked Card (1st, 2nd, 3rd)

Use this if you enabled Number of Cheapest Options as 3 or higher.

type: entities
title: E10 Cheapest Alternatives
entities:
  - entity: sensor.fuel_price_uk_sw1a_2aa_3_mi_cheapest_e10
    name: E10 1st Cheapest
    secondary_info: last-updated
  - entity: sensor.fuel_price_uk_sw1a_2aa_3_mi_rank_2_cheapest_e10
    name: E10 2nd Cheapest
    secondary_info: last-updated
  - entity: sensor.fuel_price_uk_sw1a_2aa_3_mi_rank_3_cheapest_e10
    name: E10 3rd Cheapest
    secondary_info: last-updated

You can repeat the same pattern for other fuel types (b7, e5, sdv) by changing the entity suffix.

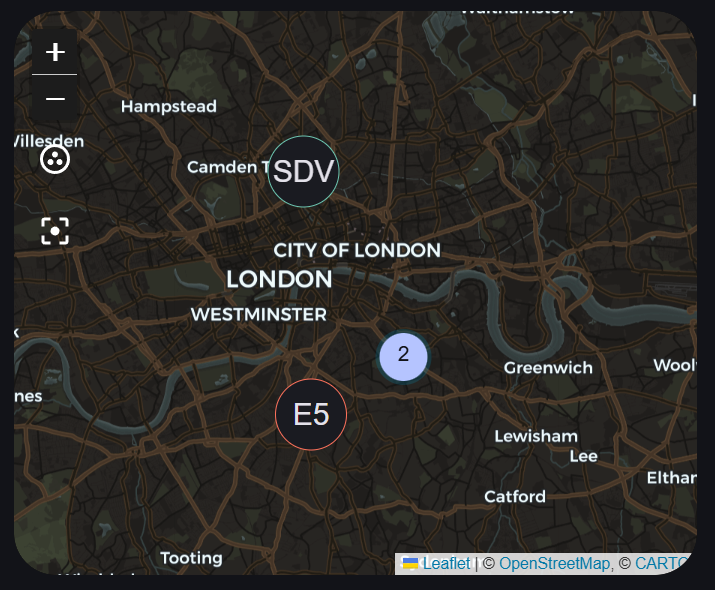

Example Map Card

Show fuel stations on a map:

type: map
entities:
  - entity: sensor.fuel_price_uk_sw1a_2aa_3_mi_cheapest_e10
    label_mode: attribute
    attribute: fuel_type
  - entity: sensor.fuel_price_uk_sw1a_2aa_3_mi_cheapest_b7
    label_mode: attribute
    attribute: fuel_type
  - entity: sensor.fuel_price_uk_sw1a_2aa_3_mi_cheapest_e5
    label_mode: attribute
    attribute: fuel_type
  - entity: sensor.fuel_price_uk_sw1a_2aa_3_mi_cheapest_sdv
    label_mode: attribute
    attribute: fuel_type
auto_fit: true

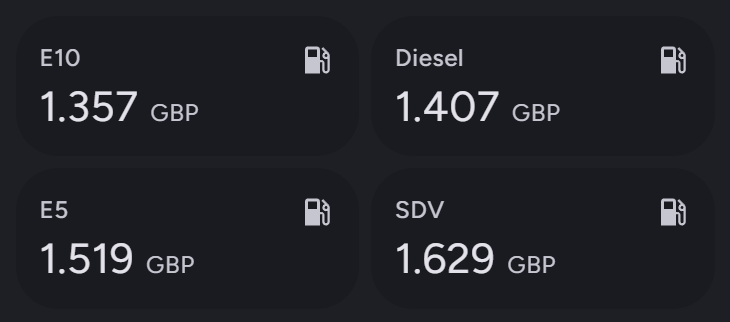

Example Grid Card

type: grid
square: false
columns: 2
cards:
  - type: sensor
    entity: sensor.fuel_price_uk_sw1a_2aa_3_mi_cheapest_e10
    name: E10
    icon: mdi:gas-station
  - type: sensor
    entity: sensor.fuel_price_uk_sw1a_2aa_3_mi_cheapest_b7
    name: Diesel
    icon: mdi:gas-station
  - type: sensor
    entity: sensor.fuel_price_uk_sw1a_2aa_3_mi_cheapest_e5
    name: E5
    icon: mdi:gas-station
  - type: sensor
    entity: sensor.fuel_price_uk_sw1a_2aa_3_mi_cheapest_sdv
    name: SDV
    icon: mdi:gas-station

How It Works

This integration ships with a lightweight async client in custom_components/fuel_prices_uk/api_client.py that:

1. Exchanges your client_id and client_secret for a short-lived OAuth token
2. Fetches station metadata (/api/v1/pfs) and fuel prices (/api/v1/pfs/fuel-prices) in API batches
3. Normalises fuel types from the new API (for example B7_STANDARD → B7)
4. Filters stations within your configured radius and exposes the cheapest values per fuel type

Data Update Frequency

• Minimum update interval: 5 minutes (300 seconds)
• Maximum update interval: 24 hours (86400 seconds)
• Recommended: 1 hour (3600 seconds) - this balances fresh data with API usage

Note: Most retailers update their prices once per day, typically overnight.

Troubleshooting

No Data / Sensors Unavailable

• Check that you have an internet connection
• Verify your location and radius settings
• Some areas may have limited station coverage
• Try increasing the search radius

Prices Seem Outdated

• Check the last_updated attribute on the sensor
• Retailers update at different times - some may be slower than others
• Try reducing the update interval for more frequent checks

Integration Won't Load

• Check your Home Assistant logs for errors
• Verify your Fuel Finder API credentials are valid
• Ensure you have Python 3.9 or higher
• Try reinstalling the integration
• Restart Home Assistant

Setup Completes But Sensors Stay Unavailable Briefly

During setup, the integration now creates entities first and performs the initial API sync in the background. If the Fuel Finder API is slow, sensors can remain unavailable for a short period before prices appear.

• Wait a few minutes and then refresh entity states
• Check logs for [coordinator][startup_refresh] messages
• If the first sync fails, the scheduled refresh cycle will retry automatically

Development & Verification

• Run python scripts/check_api_client.py --client-id YOUR_ID --client-secret YOUR_SECRET to perform a quick end-to-end check against the Fuel Finder API.
• You can also set FUEL_FINDER_CLIENT_ID and FUEL_FINDER_CLIENT_SECRET environment variables and run the same script without flags.

Known Limitations

• Data quality depends on retailer participation in the government scheme
• Not all fuel stations are included (only those participating in the transparency scheme)
• Prices may be up to 24 hours old depending on when retailers update their data
• Some retailers may not provide all fuel types

Support

For issues, feature requests, or questions:

• Open an issue on GitHub
• Check existing issues to see if your question has been answered

Data Sources

This integration uses official data provided by the UK Government Fuel Finder service:

• Fuel Finder Public API
• Fuel Finder API Authentication
• Fuel Finder Information Recipient OpenAPI

License

This project is licensed under the Apache 2.0 License - see the LICENSE file for details.

Disclaimer

This integration is not affiliated with or endorsed by the UK Government. Price data is provided as-is from official government feeds, but accuracy cannot be guaranteed. Always verify prices at the pump before filling up.

---

Made with ❤️ for the Home Assistant community
