ZENith: Real-Time AI Movement Coach

Anthony C. Perry -- github.com/aperry938

---

Abstract

ZENith is a real-time biomechanical movement quality assessment system that uses webcam-based pose estimation to provide expert-level yoga coaching feedback. The system integrates MediaPipe pose estimation with 30 expert-designed biomechanical features (joint angles, segment ratios, symmetry metrics, stability indicators), a Variational Autoencoder for continuous quality scoring, and Random Forest classification across 10 yoga poses. A novel dataset of 98 self-recorded video sequences with semi-automated kinesiologist annotations bridges embodied expertise with supervised learning.

The core contribution is biomechanically-grounded feature engineering: 30 anatomically meaningful features designed by a researcher with dual credentials (M.S. Kinesiology (CBU), B.S. Kinesiology (SDSU), 500hr RYT) achieve equivalent classification accuracy to 132 raw landmark values with 4.4x fewer dimensions, while enabling interpretable quality feedback.

---

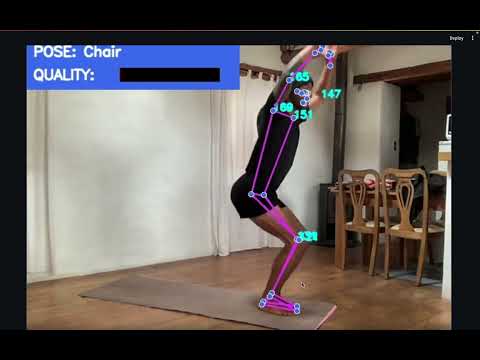

Demo

A short video demonstrating the live application can be found here:

---

System Architecture

┌────────────────────────────────────────────────────────────────────────┐
│                         React Frontend (Vite)                          │
│  ┌──────────┐ ┌─────┐ ┌───────┐ ┌──────────┐ ┌────────┐ ┌────────┐  │
│  │VideoStage│ │ HUD │ │Ghost  │ │Biomech   │ │Generatv│ │Sequence│  │
│  │(webcam)  │ │     │ │Overlay│ │Panel     │ │Coach   │ │Bar     │  │
│  └────┬─────┘ └──▲──┘ └──▲───┘ └───▲──────┘ └───▲────┘ └───▲────┘  │
│       │          │       │         │             │           │        │
│       │         WebSocket (JSON metadata stream)             │        │
└───────┼──────────┼───────┼─────────┼─────────────┼───────────┼────────┘
        │          │       │         │             │           │
   Frame blob  ┌───┴───────┴─────────┴─────────────┴───────────┴──┐
        │      │           FastAPI Gateway (server.py)              │
        └─────►│  PoseHeuristics · PoseSequencer · SessionManager  │
               └───────────────────────┬───────────────────────────┘
                                       │
               ┌───────────────────────▼───────────────────────────┐
               │            ZenithBrain (zenith_brain.py)           │
               │                                                    │
               │  ┌─────────────┐    ┌───────────────────────────┐ │
               │  │  MediaPipe   │    │  Biomechanical Features   │ │
               │  │  33 landmarks│───►│  (30 expert-designed)     │ │
               │  └──────┬──────┘    └────────────┬──────────────┘ │
               │         │                        │                │
               │  ┌──────▼──────┐    ┌────────────▼──────────────┐ │
               │  │ Random Forest│    │  Quality Scoring (profiles │ │
               │  │ (pose label) │    │  + VAE + deviations)       │ │
               │  └─────────────┘    └──────────────────────────┘  │
               │  ┌─────────────┐    ┌──────────────────────────┐  │
               │  │  VAE Ghost   │    │  Bio Flow Score + Stability│ │
               │  │ (ideal form) │    │  (angular velocity + jerk) │ │
               │  └─────────────┘    └──────────────────────────┘  │
               └───────────────────────────────────────────────────┘
                                       │
               ┌───────────────────────▼───────────────────────────┐
               │         Gemini Vision Coach (optional)             │
               │   Context-aware coaching with pose + quality data  │
               └───────────────────────────────────────────────────┘

Processing Pipeline

1. Webcam capture → JPEG frames at 30fps via getUserMedia
2. WebSocket transport → binary frame blobs to FastAPI server
3. MediaPipe Pose → 33 3D skeletal landmarks per frame
4. Dual feature paths (parallel, for ablation comparison):
   • RAW: Flatten 33×4 landmarks → 132-dim vector → Random Forest classifier
   • BIO: 30 biomechanical features → pose-specific quality scoring → deviation detection
5. VAE quality → reconstruction error against learned correct-form manifold
6. Bio flow → angular velocity-based movement quality (Butterworth-filtered jerk)
7. Heuristic coaching → rule-based corrections AND positive reinforcement for all 10 poses with varied coaching text, correction vectors, and server-side debounce
8. Pose sequencing → 4 guided flows (Warrior, Balance, Strength, Complete) with per-pose hold timers, auto-progression, and oracle-triggered analysis
9. Gemini Vision → context-aware coaching using pose label, quality score, and deviations
10. JSON response → label, quality, deviations, heuristics, stability, sequence, ghost → frontend

---

Biomechanical Features (30 dimensions)

The core intellectual contribution: expert-designed features replacing raw landmarks.

Category	Count	Features
Joint Angles	16	Bilateral shoulder flexion/abduction, elbow flexion, hip flexion/abduction, knee flexion, ankle dorsiflexion, spinal lateral flexion, trunk forward lean
Segment Ratios	6	Torso-leg ratio, arm span symmetry, stance width, shoulder-hip alignment, CoM over BoS, head-spine alignment
Symmetry Metrics	4	Bilateral comparison: shoulder, elbow, hip, knee
Stability Indicators	4	Velocity variance, CoM oscillation, BoS area, weight distribution

Each of the 10 poses has a pose-specific quality profile defining which features are critical and their ideal ranges, calibrated from correct-form video distributions and expert biomechanical knowledge.

See ANNOTATION_PROTOCOL.md for the full feature taxonomy.

---

Evaluation Results

Ablation Study: Feature Representation Comparison

Stratified 5-fold cross-validation, 4,587 frames, 10 pose classes:

Condition	Dimensions	Random Forest Acc (95% CI)	MLP Acc (95% CI)
RAW (landmarks)	132	100.0% [1.00, 1.00]	99.61% ± 0.21%
BIO (biomechanical)	30	100.0% [1.00, 1.00]	99.74% ± 0.09%
RAW+BIO	162	100.0% [1.00, 1.00]	99.74% ± 0.09%
BIO+TEMPORAL	150	100.0% [1.00, 1.00]	99.74% ± 0.09%

Key finding: 30 biomechanical features achieve equivalent classification accuracy to 132 raw landmarks (4.4x dimensionality reduction) while enabling interpretable quality feedback.

Quality Score Validation

Metric	Value
Spearman rank correlation (ρ) with expert ratings	0.958 (p < 10⁻⁵³)
Pearson correlation	0.931
ROC-AUC (correct vs. incorrect)	0.766
Cohen's d (effect size)	0.611
Mann-Whitney U (p-value)	1838 (p < 10⁻⁵)

VAE Quality Discrimination

Trained on correct-form biomechanical features only:

Model	Correct MSE	Incorrect MSE	Ratio
Standard Bio-VAE (30→8 latent)	0.000510	0.005021	9.84×
Conditional VAE (pose-conditioned)	0.000467	0.004822	10.33×

Real-Time Performance

Component	Mean Latency	Achievable FPS
Bio feature extraction	0.32 ms	3,119
Quality scoring	0.001 ms	692,806
Full bio pipeline	0.29 ms	3,493
30fps frame budget	33.3 ms	—

Full pipeline uses 0.9% of the 30fps frame budget.

Figures

Generated evaluation figures in evaluation/results/figures/:

• fig_ablation_results.png — Accuracy comparison across conditions and classifiers
• fig_confusion_matrix.png — 10-class confusion matrix (BIO + Random Forest)
• fig_quality_discrimination.png — Quality score distributions (correct vs. incorrect)
• fig_quality_scatter.png — Quality score vs. expert rating scatter
• fig_tsne_comparison.png — t-SNE embedding comparison (RAW vs. BIO)
• fig_latency.png — Per-component latency breakdown

---

Dataset

98 video recordings of 10 yoga poses, each with raw video, extracted MediaPipe keypoints, and expert biomechanical annotations. See DATASET_CARD.md for full documentation following Gebru et al. (2021).

Pose	Sanskrit	Correct	Incorrect	Total
Chair	Utkatasana	5	4	9
Crescent Lunge	Anjaneyasana	5	5	10
Downward Dog	Adho Mukha Svanasana	5	5	10
Extended Side Angle	Utthita Parsvakonasana	5	5	10
High Lunge	Ashta Chandrasana	5	5	10
Mountain Pose	Tadasana	5	5	10
Plank	Kumbhakasana	5	5	10
Tree	Vrksasana	5	5	10
Triangle	Trikonasana	5	5	10
Warrior II	Virabhadrasana II	5	4	9

---

Research Questions

1. How can biomechanical expertise be computationally encoded for real-time feedback? The system operationalizes kinesiology knowledge through 30 expert-designed biomechanical features and pose-specific quality profiles, testing whether domain expertise transfers effectively into algorithmic form.

2. Do expert-designed features match raw landmarks for classification while enabling quality assessment? The ablation study demonstrates equivalent accuracy with 4.4x fewer dimensions, while the biomechanical representation additionally supports interpretable quality scoring.

3. How should movement quality be modeled beyond binary classification? The VAE's continuous quality score and pose-specific deviation detection challenge the pass/fail paradigm common in pose estimation research, correlating strongly (ρ = 0.958) with expert ratings.

---

Project Structure

zenith-mvp/
├── server.py                    # FastAPI WebSocket gateway (heuristics, sequencer, coaching)
├── config.py                    # Centralized config from env vars + .env
├── zenith_brain.py              # Core ML pipeline (MediaPipe + RF + VAE + Bio)
├── biomechanical_features.py    # 30 expert-designed features + pose profiles
├── pose_foundations.py          # Heuristic coaching + correction vectors
├── pose_sequencer.py            # Guided yoga sequence state machine
├── vision_client.py             # Gemini Vision API (with mock fallback)
├── session_manager.py           # Session recording + persistence (thread-safe)
├── data_harvester.py            # High-quality frame collection (thread-safe)
├── vae_biomechanical.py         # Bio-VAE and c-VAE training
├── train_pose_classifier.py     # Random Forest training
├── .env.example                 # Configuration template
│
├── ZENith_Data/
│   ├── videos/                  # Raw .mov recordings
│   ├── keypoints/               # Extracted .npy files (frames × 33 × 4)
│   ├── annotations/             # Per-video JSON annotations
│   └── models/                  # Trained model weights
│
├── evaluation/
│   ├── train_and_evaluate.py    # Ablation study (4 conditions × 2 classifiers)
│   ├── quality_validation.py    # Quality score vs. expert rating validation
│   ├── generate_figures.py      # Publication-ready figures
│   ├── benchmark_latency.py     # Latency benchmarks
│   └── results/                 # JSON outputs + 6 publication-ready figures
│
├── zenith-web/                  # React 19 frontend (Vite + TypeScript + Tailwind)
│   └── src/
│       ├── App.tsx              # Root layout with error/connection banners
│       ├── components/
│       │   ├── VideoStage.tsx          # Webcam (with error/loading states)
│       │   ├── HUD.tsx                 # Pose, flow, quality, stability
│       │   ├── BiomechanicalPanel.tsx  # Bio quality + deviations + angles
│       │   ├── GenerativeCoach.tsx     # AI coach (idle/analyzing/result)
│       │   ├── SequenceBar.tsx         # Guided sequence progress
│       │   ├── SessionReport.tsx       # Session summary + timeline
│       │   ├── SessionControls.tsx     # Record, harvest, sequence
│       │   ├── GhostOverlay.tsx        # Skeleton + ghost rendering
│       │   └── ErrorBoundary.tsx       # Crash recovery
│       └── hooks/
│           ├── useZenithConnection.ts  # WebSocket state management
│           └── useZenithVoice.ts       # TTS speech synthesis
│
├── DATASET_CARD.md              # Gebru et al. dataset documentation
├── ANNOTATION_PROTOCOL.md       # Quality rating criteria and feature taxonomy
└── README.md                    # This file

---

Stack and Requirements

Component	Technology
Pose estimation	MediaPipe Pose (33 landmarks)
Biomechanical features	NumPy, SciPy (Butterworth filter)
Quality scoring	TensorFlow / Keras (VAE, c-VAE)
Classification	scikit-learn (Random Forest, MLP)
Heuristic coaching	Rule-based corrections for all 10 poses with correction vectors
Guided sequences	4 yoga flows (Warrior, Balance, Strength, Complete)
Frontend	React 19 / Vite / TypeScript / Tailwind
Backend	FastAPI / Uvicorn / WebSocket
Configuration	python-dotenv / env vars / structured logging
AI Coaching	Google Gemini API (optional, mock fallback)
Language	Python 3.10+

Reproduction

# Clone and setup
git clone https://github.com/aperry938/zenith-mvp
cd zenith-mvp
conda create --name zenith python=3.11 -y
conda activate zenith
pip install -r requirements.txt

# Configure (optional — works without Gemini key using mock coaching)
cp .env.example .env
# Edit .env to add your GEMINI_API_KEY if desired

# Run the live application
python server.py
# In a second terminal:
cd zenith-web && npm install && npm run dev

# Run evaluation suite
cd evaluation
python train_and_evaluate.py    # Ablation study (~2 min)
python quality_validation.py    # Quality score validation (~1 min)
python generate_figures.py      # Publication figures
python benchmark_latency.py     # Latency benchmarks

# Retrain VAE on biomechanical features
python vae_biomechanical.py     # Trains standard + conditional VAE

# Generate dataset annotations
cd ZENith_Data/annotations
python generate_annotations.py

Model training notebook: Google Colab

---

Future Directions

• Expanded pose vocabulary: Train classifier on additional poses (Forward Fold, Cobra, Upward Salute) to enable full Sun Salutation sequences
• Body-type adaptation: Personalized biomechanical baselines that account for morphological variation
• Velocity-based phase detection: Replace fixed temporal hold timers with angular velocity thresholds for entry/hold/exit segmentation
• Session analytics dashboard: Historical session comparison, progress tracking, and weakness identification
• Multi-person tracking: Extend to group yoga classes with per-person quality feedback
• Clinical rehabilitation: Adapting the pipeline to physical therapy contexts

---
