TRAFFICOS: Smart Traffic Light System Using Real-Time Object Detection

IoT Final Project | School of Digital Technologies Team 10: HOEUN Visai · CHHOEUN Sovorthanak · KEAN Youhorng · EK Panhawath

---

Table of Contents

1. Project Overview
2. System Architecture
3. Hardware Components
4. Wiring Diagram
5. Decision Logic
6. Object Detection Model: YOLO11
7. Software Stack
8. Setup & Installation
9. How to Run
10. Web Dashboard
11. Demo Video
12. Project Structure

---

Project Overview

TRAFFICOS is an IoT-based smart traffic light system that combines computer vision, embedded systems, and real-time communication to intelligently control traffic signals at a simulated 2-road intersection.

Unlike traditional fixed-timer traffic lights, TRAFFICOS:

• Detects vehicles in real time using YOLO11 AI object detection
• Confirms vehicle presence physically using an ultrasonic distance sensor
• Prioritizes the road with more waiting vehicles
• Adapts green time based on traffic density
• Provides a live web dashboard for remote monitoring and manual override

The system uses toy cars on a model intersection to simulate real-world traffic conditions.

Key Features

Feature	Description
Live YOLO detection	YOLO11n running on PC, fed by 2 ESP32-CAM streams
Ultrasonic confirmation	Road A verifies car is within 10cm before opening green
Priority algorithm	Higher car count wins; tie broken by waiting time
Environment sensing	DHT11 reads temperature and humidity
Buzzer alerts	Warns drivers during yellow transition
TM1637 display	Shows current time (HH:MM) on the physical model
Web dashboard	Real-time monitoring, manual override, ultrasonic toggle

---

System Architecture

┌─────────────────────────────────────────────────────────────────┐
│                        SENSING LAYER                            │
│                                                                 │
│   ESP32-CAM A           ESP32-CAM B                             │
│   (Road A feed)         (Road B feed)                           │
│        │                     │                                  │
│        └──── Wi-Fi ──────────┘                                  │
└─────────────────────┬───────────────────────────────────────────┘
                      │ MJPEG stream (:81/stream)
┌─────────────────────▼───────────────────────────────────────────┐
│                      PROCESSING LAYER                           │
│                                                                 │
│              Computer (Python — server.py)                      │
│        ┌──────────────────────────────────────┐                 │
│        │  YOLO11n   →   Count vehicles/road   │                 │
│        │  Flask     →   Serve web dashboard   │                 │
│        │  Serial    →   Send JSON to ESP32    │                 │
│        └──────────────────────────────────────┘                 │
└─────────────────────┬───────────────────────────────────────────┘
                      │ USB Serial: {"countA":2,"countB":1}
┌─────────────────────▼───────────────────────────────────────────┐
│                      CONTROL LAYER                              │
│                                                                 │
│        ESP32-WROOM-32 (traffic_controller_v10.ino)              │
│   ┌──────────────────────────────────────────────────────┐      │
│   │  Priority Algorithm  →  State Machine  →  GPIO pins  │      │
│   └──────────────────────────────────────────────────────┘      │
│        │           │           │           │                    │
│      LEDs A      LEDs B     Buzzer      TM1637                  │
│      R/Y/G       R/Y/G      (warn)    (clock)                   │
└─────────────────────────────────────────────────────────────────┘
                      │
┌─────────────────────▼───────────────────────────────────────────┐
│                    MONITORING LAYER                             │
│         Web Dashboard → http://localhost:5000                   │
│    Live streams · Vehicle counts · Signal status · Sensors      │
└─────────────────────────────────────────────────────────────────┘

Communication Flow

ESP32-CAM A/B  ──[Wi-Fi MJPEG]──▶  PC (YOLO11)  ──[USB Serial JSON]──▶  ESP32 Controller
                                        │
                                        ▼
                                   Web Dashboard
                                  (http://localhost:5000)

---

Hardware Components

ESP32 Controller (traffic_controller_v10.ino)

Component	Purpose	Quantity
ESP32-WROOM-32	Main controller	1
Red LED + 220Ω resistor	Traffic light — Road A	1
Yellow LED + 220Ω resistor	Traffic light — Road A	1
Green LED + 220Ω resistor	Traffic light — Road A	1
Red LED + 220Ω resistor	Traffic light — Road B	1
Yellow LED + 220Ω resistor	Traffic light — Road B	1
Green LED + 220Ω resistor	Traffic light — Road B	1
HC-SR04 Ultrasonic sensor	Vehicle distance — Road A	1
DHT11 Temperature sensor	Environment monitoring	1
Active buzzer module	Yellow phase warning	1
TM1637 4-digit display	Current time (HH:MM)	1

Camera System

Component	Purpose	Quantity
ESP32-WROOM-32	Camera host	2
OV3660 / compatible camera	Video capture per road	2

Computer (Processing)

• Any laptop/PC with Python 3.10+
• USB cable to ESP32 controller

---

Wiring Diagram

ESP32 Controller Pin Assignment

Component	Pin	ESP32 GPIO
Road A — Red LED	Anode → 220Ω	GPIO 2
Road A — Yellow LED	Anode → 220Ω	GPIO 4
Road A — Green LED	Anode → 220Ω	GPIO 5
Road B — Red LED	Anode → 220Ω	GPIO 22
Road B — Yellow LED	Anode → 220Ω	GPIO 23
Road B — Green LED	Anode → 220Ω	GPIO 25
Buzzer (active module)	S pin	GPIO 26
Buzzer	+	5V (VIN)
Buzzer	−	GND
HC-SR04	VCC	5V (VIN)
HC-SR04	TRIG	GPIO 32
HC-SR04	ECHO	GPIO 33
HC-SR04	GND	GND
DHT11	VCC	3.3V
DHT11	DATA + 10kΩ to 3.3V	GPIO 15
DHT11	GND	GND
TM1637	CLK	GPIO 18
TM1637	DIO	GPIO 19
TM1637	VCC	3.3V
TM1637	GND	GND
All LEDs (cathode)	Short leg	GND (shared rail)

Note: All LEDs use 220Ω current-limiting resistors. DHT11 requires a 10kΩ pull-up resistor on DATA to 3.3V.

---

Decision Logic

This is the core logic that satisfies the "combined camera + sensor" requirement.

Priority Algorithm

Step 1 — Pick priority road:
  IF only Road A has cars  → A wins
  IF only Road B has cars  → B wins
  IF both have cars        → road with MORE cars wins
  IF equal count           → road that waited LONGER wins
  IF nobody has cars       → ALL RED (keep checking)

Step 2 — Confirm with ultrasonic (Road A only):
  IF winner is A AND distance < 10cm  → open GREEN
  IF winner is A AND distance >= 10cm → car not at line yet, wait
  IF winner is B                      → open GREEN (camera only)

State Machine

ALL RED ──[car detected + confirmed]──▶ GREEN (direct, no yellow)
  GREEN ──[car still present]─────────▶ GREEN (stays indefinitely)
  GREEN ──[car gone × 5 frames]───────▶ YELLOW (2s warning + buzzer)
 YELLOW ──[2s elapsed]───────────────▶ ALL RED (0.8s safety gap)
ALL RED ──[evaluate priority again]──▶ next road GREEN

Green Time Formula

green_time = 5s + (vehicle_count × 2s)
min: 5 seconds | max: 30 seconds

Miss Counter (Anti-Flicker)

To prevent a single missed YOLO detection frame from triggering yellow, the system requires 5 consecutive missed detections before acting. This makes the system robust against momentary occlusion or camera angle issues.

Decision Logic Flowchart

YOLO detects car on Road A?
        │
    YES ├──▶ Ultrasonic < 10cm?
        │         │
        │     YES ├──▶ Road A GREEN
        │         │
        │      NO └──▶ Wait (car approaching)
        │
     NO └──▶ YOLO detects car on Road B?
                 │
             YES └──▶ Road B GREEN (no distance check)
                 │
              NO └──▶ ALL RED (no cars anywhere)

---

Object Detection Model: YOLOv11

Overview

TRAFFICOS uses YOLO11 (You Only Look Once, version 11) developed by Ultralytics, the latest generation of the YOLO family. The model is loaded via the ultralytics Python library and runs entirely on the host PC — no GPU required for real-time inference at reduced resolution.

Two model weight files are included in the project to allow easy switching:

Model File	Variant	Parameters	Size	mAP50-95	Best For
yolo11n.pt	Nano (default)	~2.6M	~5.4 MB	39.5	Low-latency, CPU inference
yolo11s.pt	Small	~9.4M	~18.4 MB	47.0	Better accuracy on front-facing/partial vehicles

The default model used is yolo11n.pt (Nano), selected for its sub-2ms inference speed which allows real-time detection at 15 FPS across two simultaneous camera streams on a standard laptop CPU.

Model Architecture

YOLO11 introduces several architectural improvements over its predecessors:

Component	Description
C3k2 Blocks	Lightweight cross-stage partial bottleneck with two smaller kernels for efficient feature extraction
SPPF	Spatial Pyramid Pooling – Fast, aggregates multi-scale spatial features in the backbone
C2PSA	Convolutional block with Parallel Spatial Attention, improves localization of small/distant objects

This architecture achieves higher accuracy per parameter than YOLOv8 and earlier models, making it ideal for embedded and near-edge deployment.

Training Dataset — MS COCO

The pre-trained yolo11n.pt model was trained on the MS COCO (Microsoft Common Objects in Context) dataset:

• 80 object classes covering everyday scenes (people, animals, vehicles, furniture, etc.)
• 118,000+ training images with 1.5M labeled object instances
• Standard benchmark for object detection research and deployment

Vehicle Classification

TRAFFICOS uses a class-ID filter to count only vehicle-type objects from YOLO's 80-class output:

COCO Class ID	Label	Included	Reason
2	car	Yes	Primary vehicle type
3	motorcycle	Yes	Two-wheelers counted as vehicles
5	bus	Yes	Large public transit vehicles
7	truck	Yes	Commercial/heavy vehicles
0	person	No	Pedestrians excluded
9	traffic light	No	Infrastructure, not traffic

In code (server.py):

VEHICLE_CLASSES = {2, 3, 5, 7}  # car, motorcycle, bus, truck

Inference Configuration

Parameter	Value	Rationale
Confidence threshold	0.25	Lower than default (0.5) to catch partial, front-facing, and toy vehicle detections
Detection resolution	320×240 px	Frame downscaled before inference to reduce latency without significant accuracy loss
Inference frequency	Every 3rd frame	YOLO_EVERY_N_FRAMES = 3 — balances CPU load vs. detection responsiveness
Stream FPS cap	15 FPS	STREAM_INTERVAL = 1/15 — limits bandwidth and processing overhead
JPEG quality	60%	Compressed dashboard stream to reduce network bandwidth

Switching to the Small Model

To improve detection accuracy (at a slight speed cost), change the model path in server.py:

# In server.py — line 30
MODEL_PATH = "yolo11s.pt"   # Switch from nano → small for better accuracy

The yolo11s.pt file is already included in the repository. The small model is especially recommended if the camera angle captures vehicles head-on (front-facing), which the nano model can sometimes miss.

---

Software Stack

Layer	Technology	File
Object Detection	YOLO11n (Ultralytics)	server.py
Web Server	Flask (Python)	server.py
Camera Streaming	OpenCV + MJPEG	server.py
ESP32 Firmware	Arduino C++	traffic_controller_v10/traffic_controller_v10.ino
Web Dashboard	HTML + CSS + Chart.js	dashboard/index.html
Serial Protocol	JSON over USB (9600 baud)	both sides

Libraries Required

Python (pip install):

pip install flask ultralytics opencv-python pyserial

Arduino IDE (Manage Libraries):

• ArduinoJson by Benoit Blanchon
• DHT sensor library by Adafruit
• Adafruit Unified Sensor by Adafruit
• TM1637 by Avishay Orpaz

---

Setup & Installation

1. Clone the repository

git clone https://github.com/YOUR_USERNAME/trafficos.git
cd trafficos

2. Install Python dependencies

pip install flask ultralytics opencv-python pyserial

3. Flash ESP32-CAM firmware

• Open Arduino IDE
• Board: ESP32 Dev Module or AI Thinker ESP32-CAM
• Flash the CameraWebServer example (built into Arduino IDE)
• Set your Wi-Fi SSID and password in the sketch
• Note the IP address printed on Serial Monitor after boot

4. Flash the traffic controller

• Open traffic_controller_v10/traffic_controller_v10.ino in Arduino IDE
• Board: ESP32 Dev Module
• Port: your ESP32 controller COM port (e.g. COM6)
• Upload

5. Configure server

Edit server.py:

CAMERA_A    = "http://YOUR_CAM_A_IP:81/stream"
CAMERA_B    = "http://YOUR_CAM_B_IP:81/stream"
SERIAL_PORT = "COM6"   # your controller ESP32 port

---

How to Run

Step 1 — Power on hardware

• Plug ESP32 controller into PC via USB
• Power on both ESP32-CAMs (USB or power bank)
• Confirm camera IPs by opening http://CAMERA_IP/ in browser

Step 2 — Run the server

python server.py

Expected output:

[INFO] Loading YOLO model...
[INFO] Model ready! conf=0.25
[INFO] Serial on COM6
[INFO] Time synced: 14:30
[Cam A] Connected!
[Cam B] Connected!

[INFO] Dashboard → http://localhost:5000

Step 3 — Open dashboard

Navigate to http://localhost:5000 in any browser on the same network.

---

Web Dashboard

The TRAFFICOS dashboard (http://localhost:5000) provides:

Panel	Description
Live Detection Feed	Side-by-side YOLO detection streams for Road A and Road B
Signal Status	Animated traffic light showing current state (RED/YELLOW/GREEN)
AUTO / MANUAL toggle	Switch between automatic AI control and manual override
Road A / Road B controls	Independent RED / YELLOW / GREEN buttons per road
Ultrasonic toggle	Enable/disable distance verification for Road A
Live Stats	Vehicle count per road, active road, current mode
Sensor Data	Temperature (°C), humidity (%), distance (cm)
Vehicle Count Chart	60-second history graph for both roads
Event Log	Timestamped log of all state changes

---

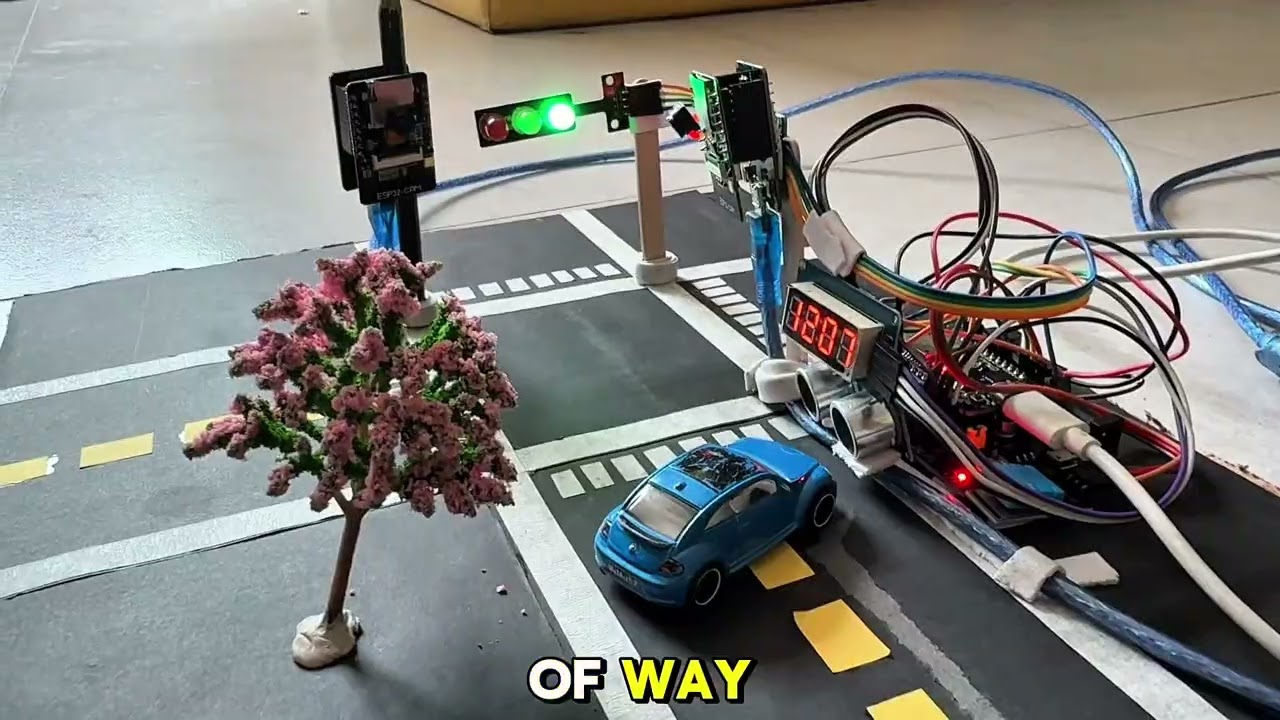

Demo Video

Video covers:

• Team introduction and system name
• System architecture walkthrough
• Decision logic explanation
• Live demonstration with toy cars
• Behind the scenes (wiring, code, dashboard)

---

Project Structure

trafficos/
│
├── server.py                            # Flask server: YOLO detection + serial + API
│
├── dashboard/
│   └── index.html                       # Web dashboard (single file)
│
├── traffic_controller_v10/
│   └── traffic_controller_v10.ino       # ESP32 Arduino firmware (final version)
│
├── yolo11n.pt                           # YOLO11 nano model weights (default, ~5.4 MB)
├── yolo11s.pt                           # YOLO11 small model weights (higher accuracy, ~18.4 MB)
│
└── README.md                            # This file

---

Evaluation Criteria Met

Criterion	Weight	Status
Camera / Vision System	20%	YOLO11n + 2× ESP32-CAM
Sensor & Actuator Integration	20%	DHT11 + HC-SR04 + LEDs + Buzzer + TM1637
Decision Logic	10%	Camera AND ultrasonic combined
Code Quality	10%	Clean, commented, modular
Video Explanation	15%	See demo video above
In-Class Presentation	20%	Live demo ready
Creativity	5%	Web dashboard + AI + real-time
Total	100%	All criteria addressed

📄 License

This project was developed for academic purposes at the American University of Phnom Penh. All rights reserved by the authors.

---

ICT-360 - Introduction to Internet of Things | American University of Phnom Penh | May 30, 2026
