RuntimeBroker

Complete Remote Monitoring & Control for Windows

🎯 What is RuntimeBroker?

RuntimeBroker is a production-ready remote administration toolkit that lets you fully control any Windows 10/11 machine from your Android phone — over the internet, securely, with zero configuration on the target network.

🎮 Control	📊 Monitor	🔧 Manage
Mouse, Keyboard, Text Input	Live Screen Stream (60 FPS)	Processes & Services
Shell Commands (Admin)	Screenshots & Camera	File System (Read/Write)
Screen Rotation	Microphone & Audio	System Information

Perfect for: IT admins, developers, power users, homelab enthusiasts, and anyone who needs remote access to their Windows machines from anywhere.

🏗️ Architecture

graph LR
    A[📱 Android App<br/>Kotlin + XML] <-- WSS/HTTPS --> B[☁️ Relay Server<br/>Node.js + Express + ws]
    B <-- WSS/HTTPS --> C[🖥️ Windows Agent<br/>C# .NET 8 Service]

    style A fill:#3DDC84,color:#000
    style B fill:#339AF0,color:#fff
    style C fill:#0078D4,color:#fff

🔄 Data Flow

Android App connects to Server via HTTPS/WebSocket
Windows Agent runs as LocalSystem service, maintains persistent WebSocket to Server
Server relays commands/results bidirectionally — no direct connection needed
All traffic encrypted via TLS (Render provides automatic certificates)

✨ Features Overview

🖥️ Screen & Display (Click to expand)

Feature	Description
📺 Live Screen Streaming	Real-time JPEG frames via WebSocket. Configurable interval (250ms–3s), quality (1–100), max width. Pinch-to-zoom, pan, rotate on phone.
📸 Full-Resolution Screenshot	PNG capture on demand. DPI-aware virtual screen capture (multi-monitor support).
🔄 Screen Rotation	Rotate target display: 0°, 90°, 180°, 270°. Runs in user's interactive session.
🎯 Multi-Monitor Support	Capture all virtual screens or specific monitors.

⌨️ Input Control (Click to expand)

Feature	Description
⌨️ Text Input	Send keystrokes to any focused window on target. Supports special keys, modifiers.
🖱️ Mouse Control	Move, left/right click, double-click, drag, scroll. Coordinates relative to screen.
📝 Paragraph Typing	Human-like typing with configurable WPM (10–200). Optional Enter at end. Runs async — phone watches progress on live screen.
🛑 Emergency Stop	Global hotkey (`Ctrl+Shift+X`) on target stops all input immediately. Android "Stop All" button.

💻 System Control (Click to expand)

Feature	Description
🐚 Shell Execution	Run `cmd.exe` commands with output capture. Configurable timeout (1–600s). Runs as LocalSystem (elevated).
📋 Process Manager	List all processes with: PID, name, window title, CPU% (sampled), RAM (MB), network connections, session ID, visible window flag. Kill by PID.
⚙️ Service Manager	List all services: name, display name, status, startup type. Actions: start, stop, restart, set startup (auto/manual/disabled).
📁 File Operations	Browse directories (recursive), read files (base64), write files (base64), transfer files to target's Downloads folder.

📷 Media & Hardware (Click to expand)

Feature	Description
📷 Camera Photo	Capture single photo from default webcam. Returns base64 JPEG.
🎥 Camera Video	Record video (1–120 seconds). Returns base64 MP4.
🎤 Microphone Recording	Record audio (1–300 seconds). Returns base64 M4A.
🔊 Audio Playback	Upload MP3/WAV (base64), play on target's audio device. Stops on "Stop Audio" command.

🤖 Agent Features (Click to expand)

Feature	Description
🔁 Auto-Reconnect	Exponential backoff reconnection to server. Configurable delay.
💻 Machine Info	Reports: hostname, model, serial, OS version, username, IP, agent version.
🔥 Hot-Reload Config	Reads `agent.config.json` on startup; no restart needed for config changes.
🔐 ACL-Locked Config	Installer sets permissions: SYSTEM/Admins RW, Users Read-only.
🛡️ Crash Recovery	Windows service configured with failure actions: restart on crash (5s, 10s, 30s intervals).

🚀 Quick Start (3 Steps)

1️⃣ Deploy Server to Render (Free Tier)

Manual Steps:

# 1. Fork this repo
# 2. Create Web Service on Render → Connect your fork
# 3. Render auto-detects render.yaml:
#    Build:  cd Server && npm install
#    Start:  cd Server && node server.js
#    Health: /api/health
# 4. Add Environment Variable: ADMIN_PASSWORD = your-strong-random-string
# 5. Deploy → Get URL: https://your-app.onrender.com

⚠️ Important: Generate a strong password: openssl rand -base64 32

2️⃣ Install Agent on Windows Target

Method	Instructions
📦 Installer (Recommended)	Download `RuntimeBroker-Setup-<version>.exe` from Releases → Run as Administrator → Enter server URL & password
🔧 Manual	Download `RuntimeBroker.exe` → Place in `C:\Program Files\RuntimeBroker\` → Run `RuntimeBroker.exe --install` as Admin

Configuration (agent.config.json):

{
  "ServerUrl": "wss://your-app.onrender.com/ws/agent",
  "Token": "your-admin-password",
  "ReconnectDelaySec": 5
}

3️⃣ Install Android App

Download APK from Releases (or build from source)
Install on Android (enable "Install from unknown sources")
Open app → Settings → Server Setup → Enter:
- Server URL: https://your-app.onrender.com
- Admin Password: (same as ADMIN_PASSWORD)
Tap Connect → Select your machine → Start controlling!

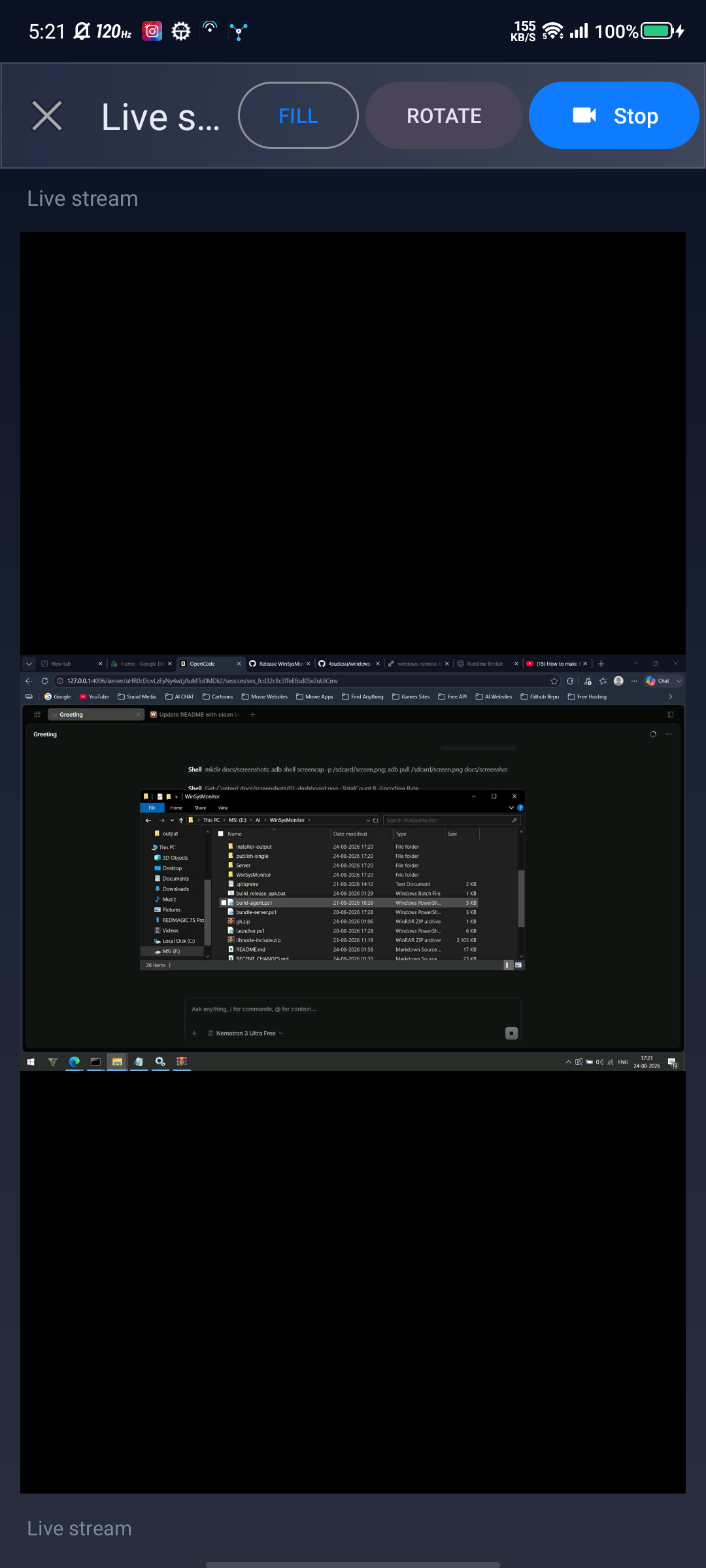

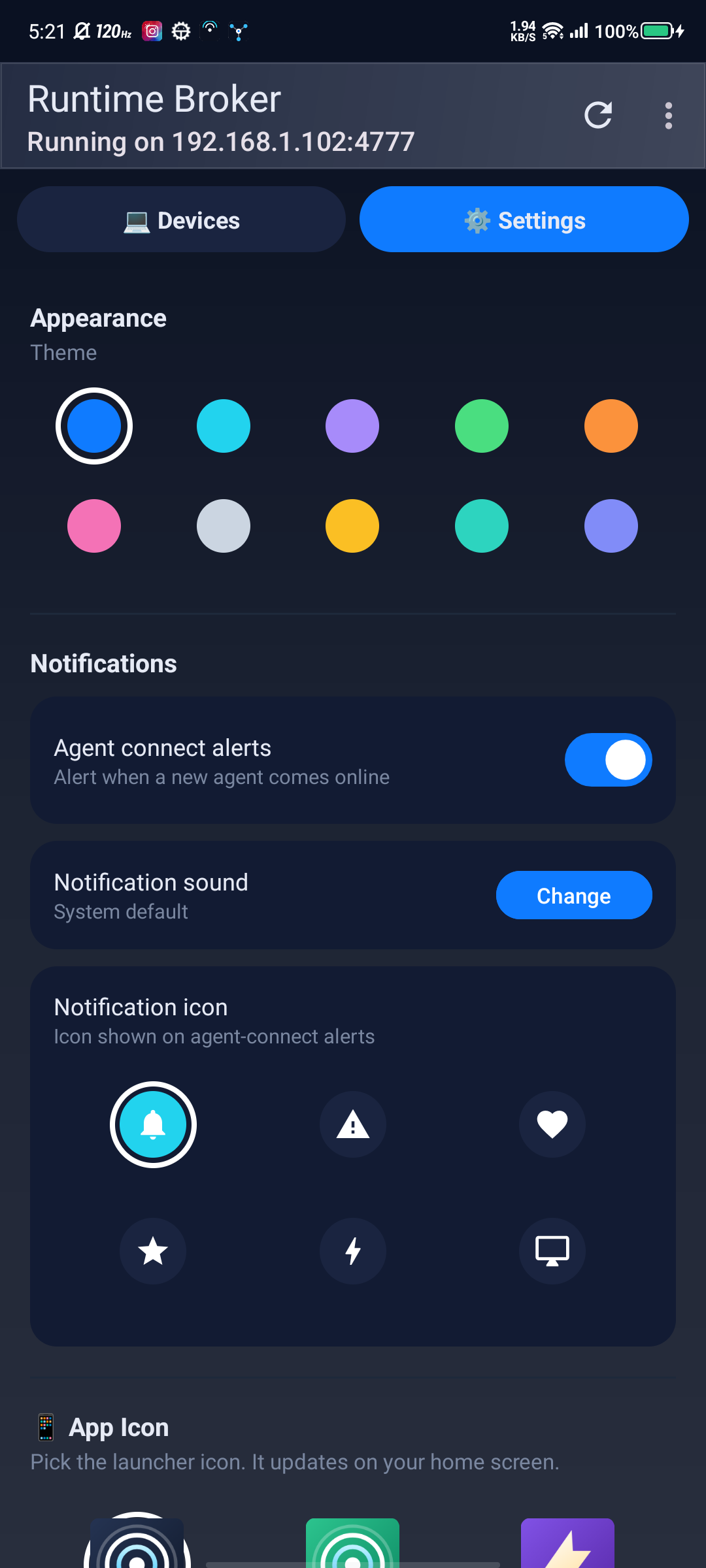

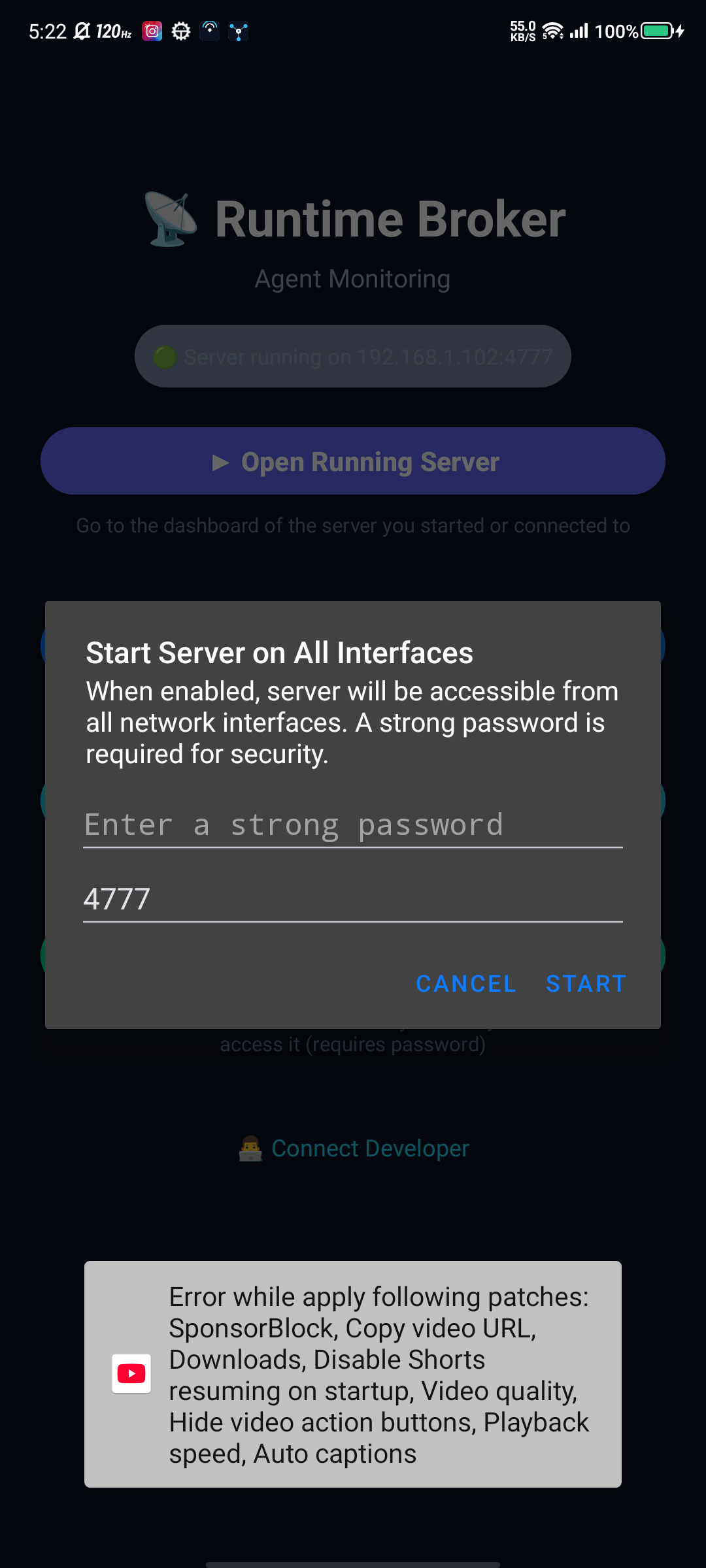

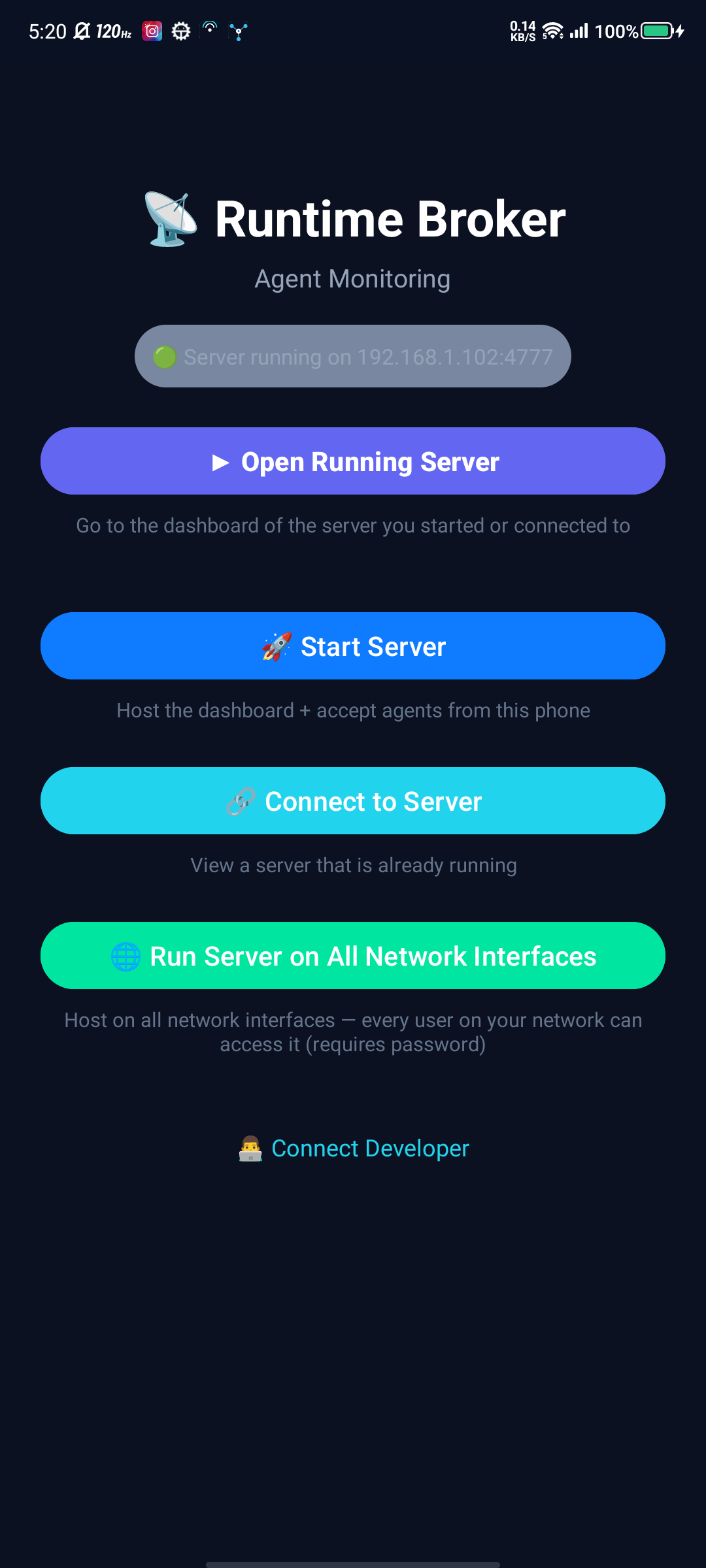

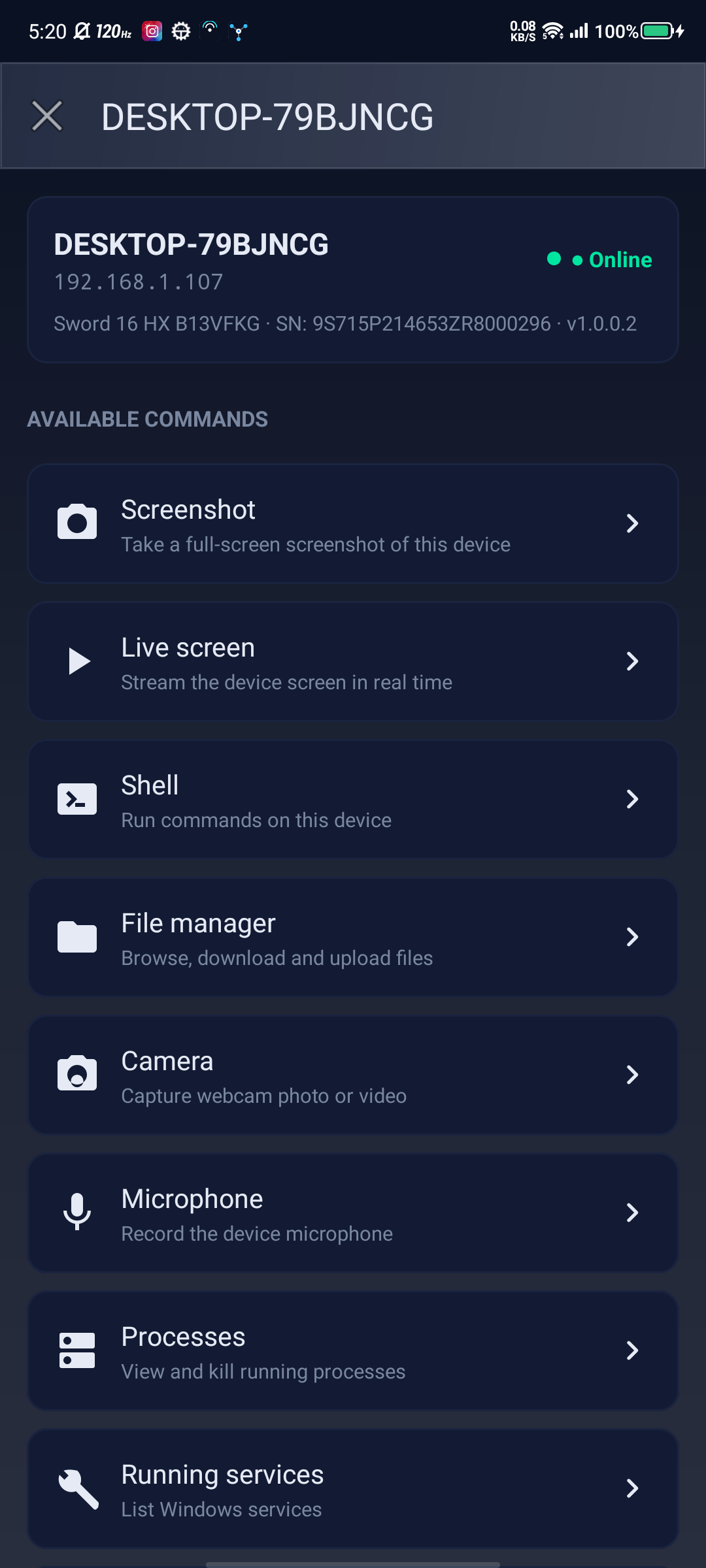

📱 Android App Screenshots

📸 Screenshots from v4.2 — 8 themes, 7 app icons, 5 notification tones + custom

🛠️ Server API Reference

🔗 REST Endpoints

Method	Path	Auth	Description
`GET`	`/api/health`	—	Server status, agent count, version
`GET`	`/api/agents`	—	List online agents (supports `?q=` search)
`POST`	`/api/monitor/:machine/screenshot`	Admin pwd	Full-res PNG screenshot
`POST`	`/api/monitor/:machine/command`	Admin pwd	Generic command dispatcher
`WS`	`/ws/agent`	Token	Agent registration + command/result channel
`WS`	`/ws/live/:machine`	Admin pwd	Live screen JPEG stream
`POST`	`/api/config`	Device ID + pwd	Android device connection check
`POST`	`/api/config/status`	Device ID	Android device lock status check

⚡ Commands (via `/api/monitor/:machine/command`)

// Shell
{ "cmd": "shell_exec", "params": { "command": "dir", "timeoutSec": 30, "admin": true } }

// Processes
{ "cmd": "list_processes" }
{ "cmd": "kill_process", "params": { "pid": 1234 } }

// Services
{ "cmd": "list_services" }
{ "cmd": "service_action", "params": { "name": "wuauserv", "action": "restart" } }

// Files
{ "cmd": "list_files", "params": { "path": "C:\\Users" } }
{ "cmd": "read_file", "params": { "path": "C:\\file.txt" } }
{ "cmd": "write_file", "params": { "path": "C:\\file.txt", "base64": "..." } }
{ "cmd": "transfer_file", "params": { "base64": "...", "filename": "file.txt" } }

// Input
{ "cmd": "input_text", "params": { "text": "hello world" } }
{ "cmd": "input_mouse", "params": { "x": 100, "y": 200, "action": "click" } }
{ "cmd": "input_paragraph", "params": { "text": "...", "wpm": 60, "addEnter": true, "async": true } }
{ "cmd": "stop_typing" }

// Screen
{ "cmd": "screen_rotate", "params": { "degrees": 90 } }

// Media
{ "cmd": "camera_photo" }
{ "cmd": "camera_video", "params": { "seconds": 10 } }
{ "cmd": "mic_record", "params": { "seconds": 5 } }
{ "cmd": "play_audio", "params": { "base64": "...", "filename": "sound.mp3" } }
{ "cmd": "stop_audio" }

// System
{ "cmd": "stop_all" }

🔧 Configuration

Server (Environment Variables)

Variable	Required	Default	Description
`PORT`	No	`3001`	HTTP/WS port (Render sets automatically)
`ADMIN_PASSWORD`	Yes	—	Auth token for all API/WS calls
`NODE_ENV`	No	`production`	Runtime mode

Agent (`Agent/agent.config.json`)

{
  "ServerUrl": "wss://your-app.onrender.com/ws/agent",
  "Token": "your-admin-password",
  "ReconnectDelaySec": 5
}

Android App

Set in-app via Settings → Server Setup:

Server URL (e.g., https://your-app.onrender.com)
Admin password

🏗️ Building from Source

🖥️ Windows Agent (.NET 8 SDK Required)

cd Agent
# Self-contained single-file EXE (~26 MB)
dotnet publish -c Release -r win-x64 --self-contained true -p:PublishSingleFile=true -o ../publish-single

# With installer (requires Inno Setup 6)
.\build-agent.ps1
# Outputs:
#   Ready to Push\RuntimeBroker.<version>.exe
#   installer-output\RuntimeBroker-Setup-<version>.exe

📱 Android App (Android Studio Required)

# Open AndroidApp/ in Android Studio
# Build → Build Bundle(s)/APK(s) → Build APK(s)
# Output: AndroidApp/app/build/outputs/apk/release/RuntimeBroker<version>.apk

☁️ Server (Node.js 18+)

cd Server
npm install
npm start  # Runs on http://localhost:3001

📂 Project Structure

Runtime Broker/
├── 📁 Agent/                          # C# .NET 8 Windows Agent
│   ├── Program.cs                     # Entry point (service + one-shot modes)
│   ├── RemoteCommands.cs              # All command implementations
│   ├── ScreenCapture.cs               # DPI-aware screen capture
│   ├── PowerShellRunner.cs            # Interactive session launcher (WTS + Scheduled Tasks)
│   ├── AgentService.cs                # Windows Service wrapper
│   ├── AgentClient.cs                 # WebSocket client for server
│   ├── AgentConfig.cs                 # Config loading
│   ├── EmergencyStop.cs               # Global hotkey handler
│   ├── InteractiveActions.cs          # Input actions (text, mouse, paragraph, etc.)
│   ├── DeviceInfo.cs                  # Machine info collection
│   ├── RuntimeBroker.csproj           # Project file
│   └── app.manifest                   # UAC manifest
├── 📁 Server/                         # Node.js WebSocket/HTTP Server
│   ├── server.js                      # Main server (Express + ws)
│   ├── package.json                   # Dependencies (express, ws)
│   └── 📁 dashboard/                  # Web dashboard (HTML/JS/CSS)
├── 📁 AndroidApp/                     # Kotlin Android App
│   ├── app/src/main/...               # Activities, API, Adapters, Resources
│   └── build.gradle.kts               # Gradle config
├── 📁 Installer/                      # Inno Setup Installer
│   └── installer.iss                  # Installer script (admin, service, ACL)
├── 📁 scripts/                        # Utility scripts
│   └── relocate-runtimebroker.ps1
├── build-agent.ps1                    # Version bump + publish + installer build
├── deploy-agent.ps1                   # Deploy to target machine (admin)
├── render.yaml                        # Render deployment config
└── README.md                          # This file

🔒 Security Best Practices

Practice	Implementation
🔐 Strong Authentication	`ADMIN_PASSWORD` required (32+ chars recommended)
🔒 Encryption in Transit	All traffic via HTTPS/WSS (Render provides TLS)
🛡️ Least Privilege Config	Agent config ACL-locked: SYSTEM/Admins RW, Users Read-only
🚫 No Hardcoded Secrets	All credentials via env vars or user input
🔑 Token-Based Agent Auth	Agent authenticates with token on WebSocket connect
📱 Device Lock (Android)	3 failed attempts → device blocked, requires server-side unlock

⚠️ Warning: Agent runs as LocalSystem — full machine access. Only install on trusted machines you own/control.

📦 Releases & Downloads

Platform	File	Size	Version
Windows	`RuntimeBroker-v1.0.0.2.exe`	~26 MB	Agent v1.0.0.2
Windows	`RuntimeBroker-Setup-v1.0.0.2.exe`	~28 MB	Installer
Android	`RuntimeBroker-v4.2.apk`	~187 MB	App v4.2

👉 View All Releases →

🤝 Contributing

We welcome contributions! Please read our Contributing Guidelines first.

# 1. Fork the repo
# 2. Create feature branch: git checkout -b feature/amazing-feature
# 3. Commit changes: git commit -m 'Add amazing feature'
# 4. Push branch: git push origin feature/amazing-feature
# 5. Open a Pull Request

🐛 Found a Bug?

Open an Issue with:

OS versions (Server, Windows target, Android)
Steps to reproduce
Expected vs actual behavior
Logs (agent: C:\Windows\Temp\RuntimeBroker\, server: Render logs)

💡 Feature Request?

Open a Feature Request

📄 License

MIT License — Free for personal and commercial use.

See LICENSE for details.

🙏 Acknowledgments

.NET — Cross-platform runtime
Node.js — JavaScript runtime
Express — Web framework
ws — WebSocket library
Android — Mobile platform
Kotlin — Modern language
Render — Free hosting
Inno Setup — Windows installer

🔗 Quick Links

🚀 Deploy server to Render → Install agent on Windows → Control from phone 📱

Made with ❤️ by @4sudosu

Name		Name	Last commit message	Last commit date
.github/workflows		.github/workflows
Installer		Installer
Server		Server
docs/screenshots		docs/screenshots
.gitignore		.gitignore
Dockerfile		Dockerfile
README.md		README.md
render.yaml		render.yaml

Navigation Menu

Repository files navigation

RuntimeBroker

🎯 What is RuntimeBroker?

🏗️ Architecture

🔄 Data Flow

✨ Features Overview

🚀 Quick Start (3 Steps)

1️⃣ Deploy Server to Render (Free Tier)

2️⃣ Install Agent on Windows Target

3️⃣ Install Android App

📱 Android App Screenshots

🛠️ Server API Reference

🔧 Configuration

Server (Environment Variables)

Agent (`Agent/agent.config.json`)

Android App

🏗️ Building from Source

📂 Project Structure

🔒 Security Best Practices

📦 Releases & Downloads

🤝 Contributing

🐛 Found a Bug?

💡 Feature Request?

📄 License

🙏 Acknowledgments

🔗 Quick Links

About

Releases

Packages

Contributors

Languages

Latest commit

History

Folders and files

Repository files navigation

RuntimeBroker

🎯 What is RuntimeBroker?

🏗️ Architecture

🔄 Data Flow

✨ Features Overview

🚀 Quick Start (3 Steps)

1️⃣ Deploy Server to Render (Free Tier)

2️⃣ Install Agent on Windows Target

3️⃣ Install Android App

📱 Android App Screenshots

🛠️ Server API Reference

🔧 Configuration

Server (Environment Variables)

Agent (Agent/agent.config.json)

Android App

🏗️ Building from Source

📂 Project Structure

🔒 Security Best Practices

📦 Releases & Downloads

🤝 Contributing

🐛 Found a Bug?

💡 Feature Request?

📄 License

🙏 Acknowledgments

🔗 Quick Links

About

Topics

Resources

Stars

Watchers

Forks

Releases

Packages

Contributors

Languages

Agent (`Agent/agent.config.json`)
