Add one Option to Individual Profile

[mh254]

Are there any hints how to add one Option to the Individual Profil?

I got an original Dataset for my Leon Cupra build 02/2017. I tried a lot to add one Option, ask others for Help, but without success.

I flashed around 400 Datasets, but now i have no more ideas.

Is there anyone out there who can give me advice what i need to do from Scratch in my original Profile?

[mh254]

I already tried this steps:

• add a function to an unused "list_of_grouped_controls" byte (0x4CD-0x4EB)
• set a value for each available driving mode in "profile settings" (0x365-0x4CD) section
• added options to "available_choices_at_individual_profile[6]" (0x653-0x68F) to allow control via individual mode
• Changed grouped_controls_controlbyte (0xA27) to 7F

But still it doesn't show the Internal Sound in Individual Profile Setting.

[jilleb]

Don't forget to add to the 8FB range.

Can you share your data? I'll have a look.

[mh254]

FPA_CUPRA_300.zip

Here are the original and my modded files.

Thanks for taking the time.

[cevallos98]

hello, can i use your file on a AA gateway?

[kbratos]

How did you ungrouped/assigned the soundaktor to itself? I'm looking to do the same as you but I can't find the way to do it.

I have a cupra ateca and the soundaktor and valves are linked to the engine

[mh254]

Strange, just came from my car - everything is now as expected with the V3 version from the above attached files.

Slider for DCC, Eco and Sport are not reset to D after igntion off/on and now the Interior Sound is also available.

Only thing i did now: Reset the MIB Unit....

[jilleb]

😄 hah, that happened to me sonetimes as well. The car can do some strange things sometimes!

Sounds good! 👍

[jackylinuxcom]

Strange, just came from my car - everything is now as expected with the V3 version from the above attached files.

Slider for DCC, Eco and Sport are not reset to D after igntion off/on and now the Interior Sound is also available.

Only thing i did now: Reset the MIB Unit....

@mh254 Hello, I am interesting to tune DCC, could you share which address/value you enable the slider DCC in individual profile?
Thanks

[jamstonmartames]

This is also an aim of mine, to have a bit of fun with the 14.Wheel Dampening datasets. I have the C variant for an Arteon and the B variant for the SEAT Cupra's but not the VW GTI or Golf R mk7/7.5s on the B variant. Does anyone have these so I can begin? @mh254 @jilleb @Mr-MIBonk

[langers2k]

@jamstonmartames - whilst I'm not able to help you find the VW datasets, are you able to share the Arteon C variant dataset please?

[mh254]

Is there a was to see if the settings for the Interior Sound are working? My exhaust is loud so it is hard to hear a difference...

[jilleb]

Yes, you can go into the control module and check the live measurements. Most control modules have a value there about the Driving Profiles Status

[mh254]

Doesn't really work, i think there is still something missing.

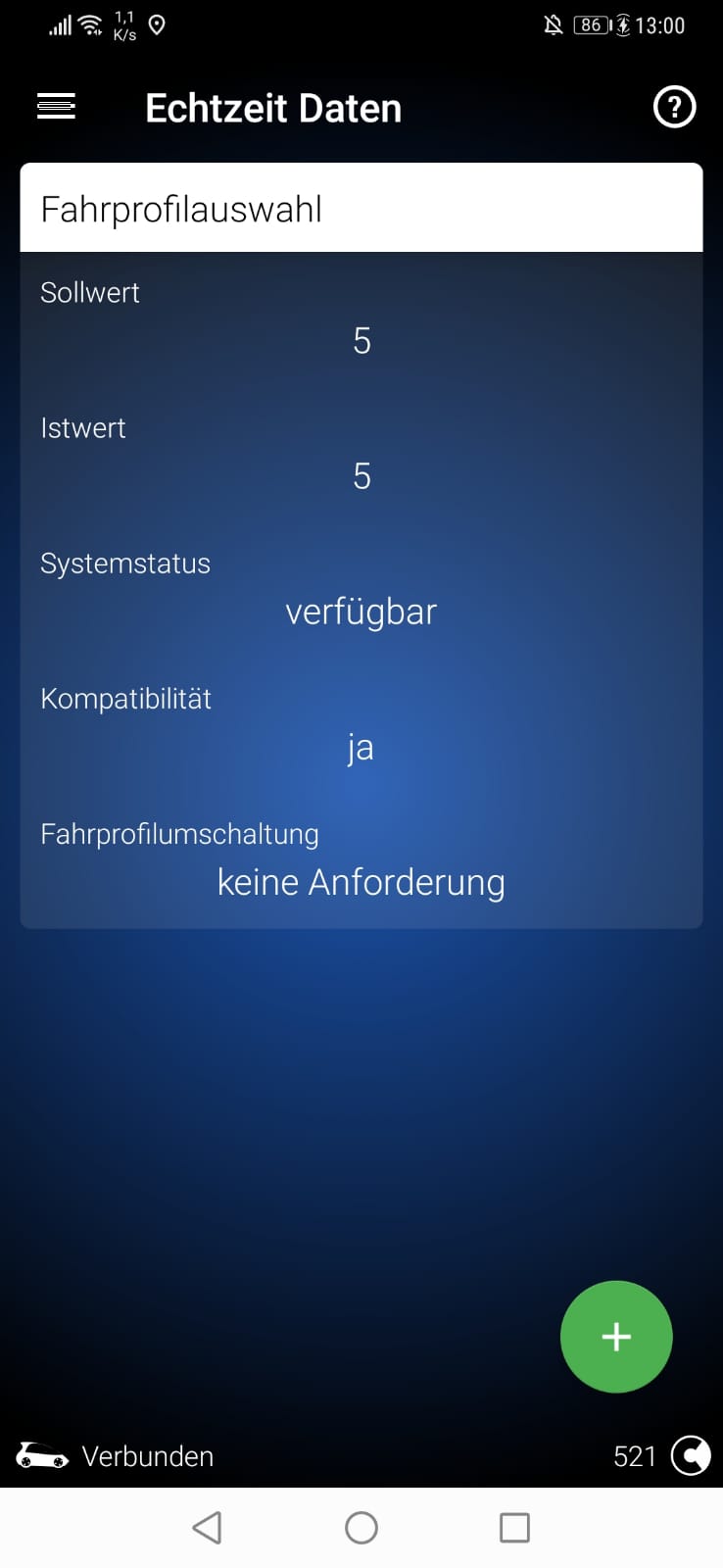

The values on in the attached screenshot change between profiles, but the interiour sound is only active in Cupra-Profile, not in individuell.

[lito69]

I can try things
